Orange LC UPC To LC UPC Fiber Optic Patch Cable OM2 Simplex 3.0mm LSZH

Product Categories

XDK Communication Equipment Huizhou Co., Ltd

Contact Now

Orange LC UPC To LC UPC Fiber Optic Patch Cable OM2 Simplex 3.0mm LSZH

Brand Name : XDK

Model Number : Fiber Optic Patch Cord LC/UPC-LC/UPC,Muiltmode, OM2, Simplex

Certification : ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS

Place of Origin : China/Vietnam

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 5-8 work days

Packaging Details : regular packaging

Supply Ability : 5 million termination/month

Fiber Mode : OM2

Connector Type : LC/UPC-LC/UPC

Fiber Count : Simplex

Jacket Material : LSZH / PVC( can be required)

Jacket Color : Orange

Length : 1m / 5m(customized)

Contact Now

Fiber Optic Patch Cord/LC/UPC-LC/UPC Muiltmode OM2/ Simplex/3.0mm/ LSZH/Orange

Introduction

Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.

Our patch cord provides high reliability and flexibility for our customers in different industries. Our Company offers customized service. All patchcords can be customized in length, fiber mode and connector types to suit every single customer requirement with our state-of-art production facilities.

Orange LC UPC To LC UPC Fiber Optic Patch Cable OM2 Simplex 3.0mm LSZH

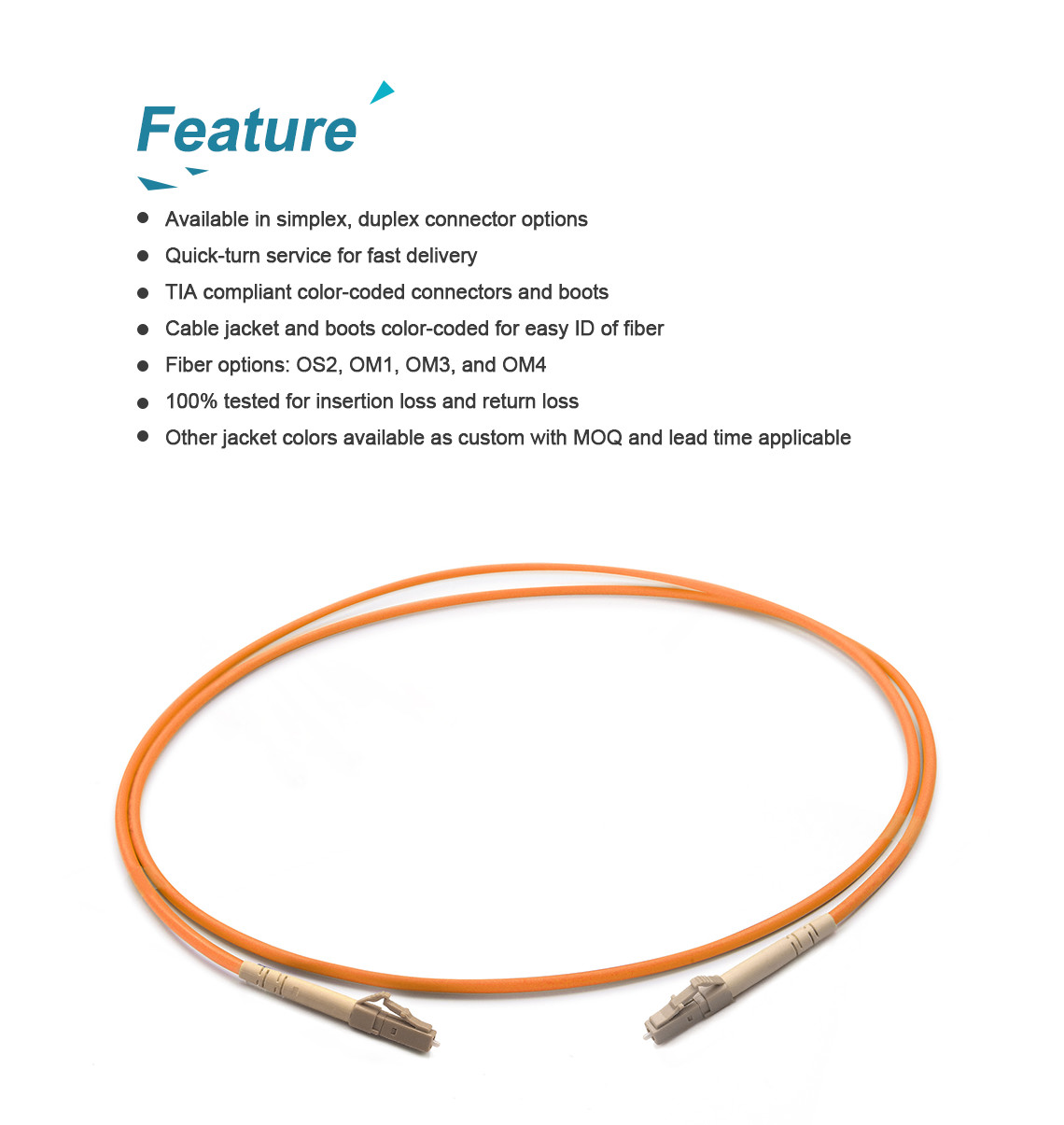

Features

1) Avalible in simplex, duplex connector options

2) Good lead time services

3) TIA compliant color-coded connectors and boots

4) Cable jaket and boots color-coded for easy ID of fiber

5) Fiber options: OS2, OM1,OM3, and OM4

6) Insertion loss and return loss are 100% tested

7) Other jacket colors available as custom with MOQ and lead time applicable

Specification

Connector Type	LC/UPC - LC/UPC	Fiber Count	Simplex
Fiber Mode	OM2 50/125um	OFL Bandwidth (850/1300nm)	500/500 MHz*km
Insertion Loss	≤0.3dB	Return Loss	≥35dB
Attenuation at 850/1300nm (Typical)	3.5/1.5 dB/km	Ferrule Materials	Ceramic
Cable Diameter	3.0mm	Strength Member	Aramid yarn
Optical Source	LED Light	Minimum Bend Radius (Short term/Long term)	20D/10D
Operating Temperature	-20~70°C	Storage Temperature	-40~85°C

Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH

Product Tags:

Orange LSZH Fiber Optic Patch Cable

3.0mm Simplex Fiber Optic Patch Cable

OM2 orange fiber patch cable

Orange LC UPC To LC UPC Fiber Optic Patch Cable OM2 Simplex 3.0mm LSZH Images
