OEM Aerial 12 24 48 96 Core Fiber Optic Splice Closure Ip66 Junction Box for FTTH Use
Discription
Fiber optic closure is vertical with 2 inlet and 2 outle.The outer shell is made of enhanced PC engineering plastic, it’s strong and light, can efficaciously prevent the lighting strike, erosion, aging and fire resist, the tray is pulldown, so it’s easy installation, don’t need dismantle other tray, the material of the sealing is silica gel,it can be placed in underground, aerial, wall-mounting, pedestal or direct buried, hand hole-mounting and duct-mounting applications. Foclink fiber closures can improve the operation of your network communication system.Closure is suitable for the applications up to 96 single fibers,which can cover most of the applications in the long-distance transmission and local fiber distribution networks, like Fiber To The Home / Fiber To The Curb ...(FTTH/FTTC).

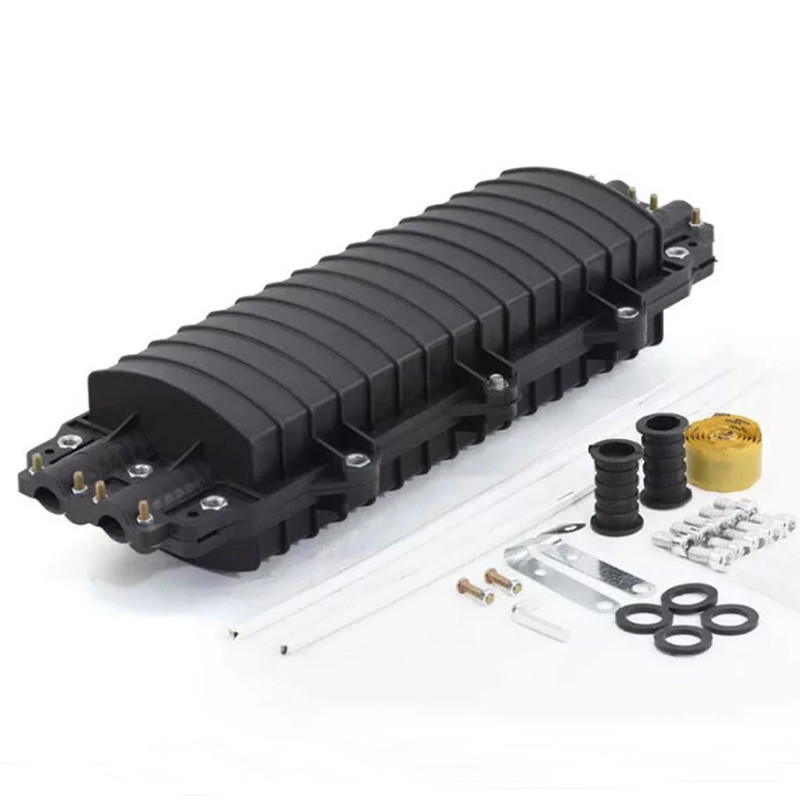

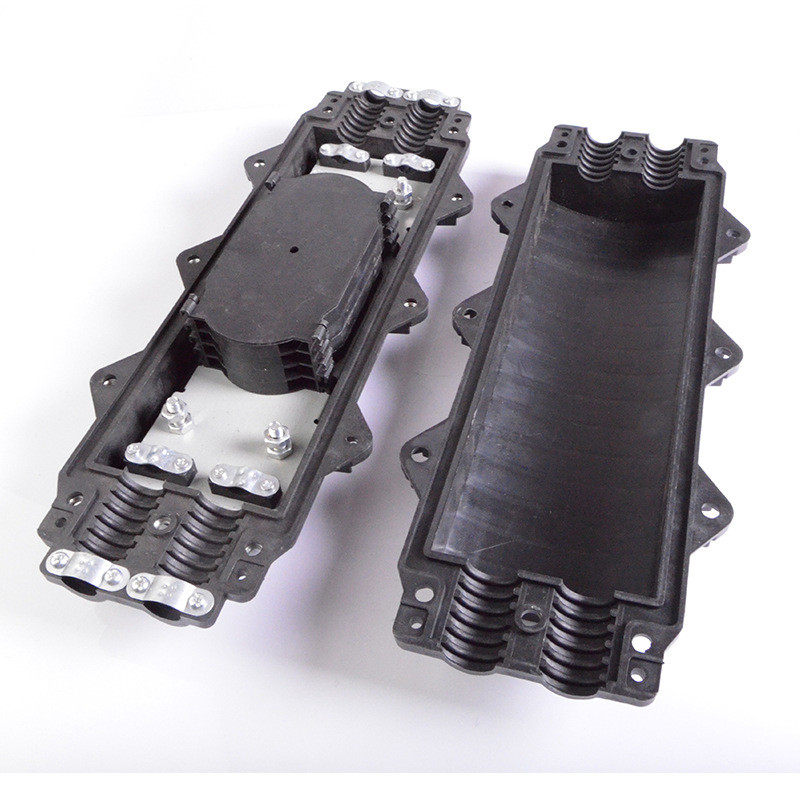

Product Pictures
Features
• Having good mechanical performance, strong bad weather resistance capacity as well as electric features by use of high quality polypropylene together with thermal aging additive
• Made of material with good capability of outdoor environment resistance and high durability
• Having reliable cable fixing and grounding facilities
• Using self-adhesive isolative tape and glue belt to seal
• To use rotating method to connect fiber organizer cassette result in easy installation
• Mechanical design suitable for installing, fiber splicing storage and cable connection
• Compact and tight
Main Technical Parameters for fiber optic splice closure
• Applicable environment temperatures: -40°C~+65°C
• Air pressure: 70~106Kpa
• Pull-out strength≥1000N, compressive force to shell≥2000N , impact: 16N.m
• Bending force to fiber cable: 150N (±45°), torsion force to fiber cable: 50N.m (±90°)
• Tightness: no pressure drop within the enclosure pressurized to 60Kpa at 70°C for 100 hours
• Insulation resistance≥2×104MΩ,resistance to 15KV/min without break down
• Life expectancy: 25 years
Specification
| Dimension ( mm ) | 460×180×108 |
| Weight ( Kg ) | 3.5 |
| Cable Diameter (mm) | Φ7-Φ18 |
| Cables Entry & Exit | 2 & 2 |
| Max Capacity of Cores Per Splice Tray | 12 (Single)/24 (Single) |
| Max Capacity of Splice Trays/ Closure | 5 (12cores/tray) / 4 (24 cores/tray) |
| Max Capacity of Cores | 60 Cores (12cores/tray) / 96 Cores (24 cores/tray) |
| Sealing Structure of Shell | Sticky Cincture or Silicon Gum Material |
Transportation Service
Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH
Fiber Optic Cable Mechanical Performance Testing Laboratory
1) Main Testing Type: Precision Test and Mechanical Test.
2) Precision Testing Machine: EXFO OTDR, EG&G PMD-440,CD-400.
3) Mechanical Performance Testing : Temperature, Impact, Tensile, Bending, Torsion, Flexing, Winding, Vibration, Water Penetration, Fusion Splicer, Water Penetration.
Our advantages
1) Professional cable manufacturer
2) About 23 years experiences in cable industry
3) MOQ just 1Km
4) ISO, UL , ROSH,REACH...certifications
5) Can be customized production of fiber optic cable
