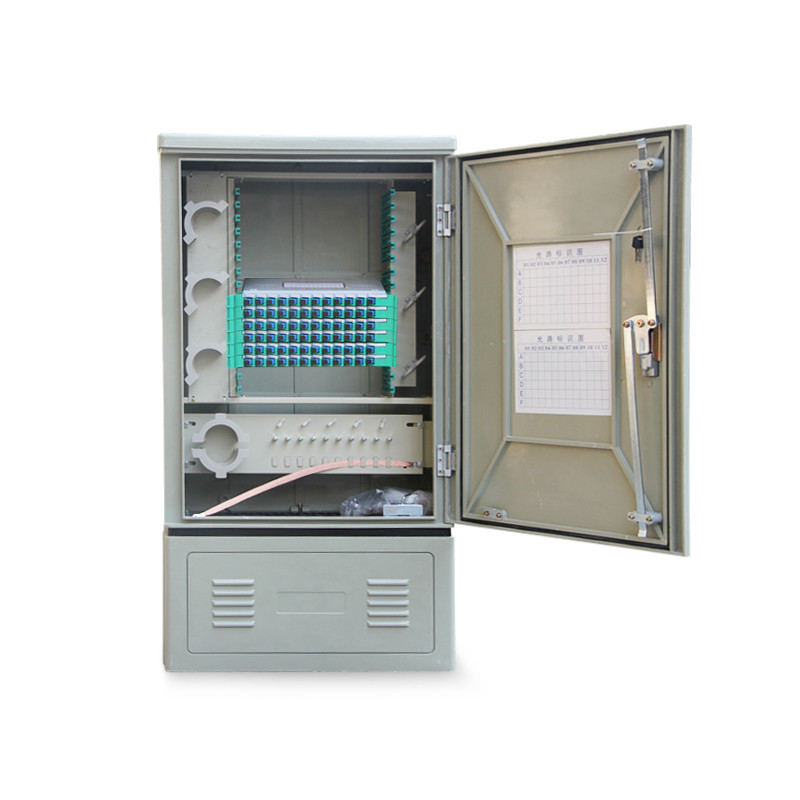

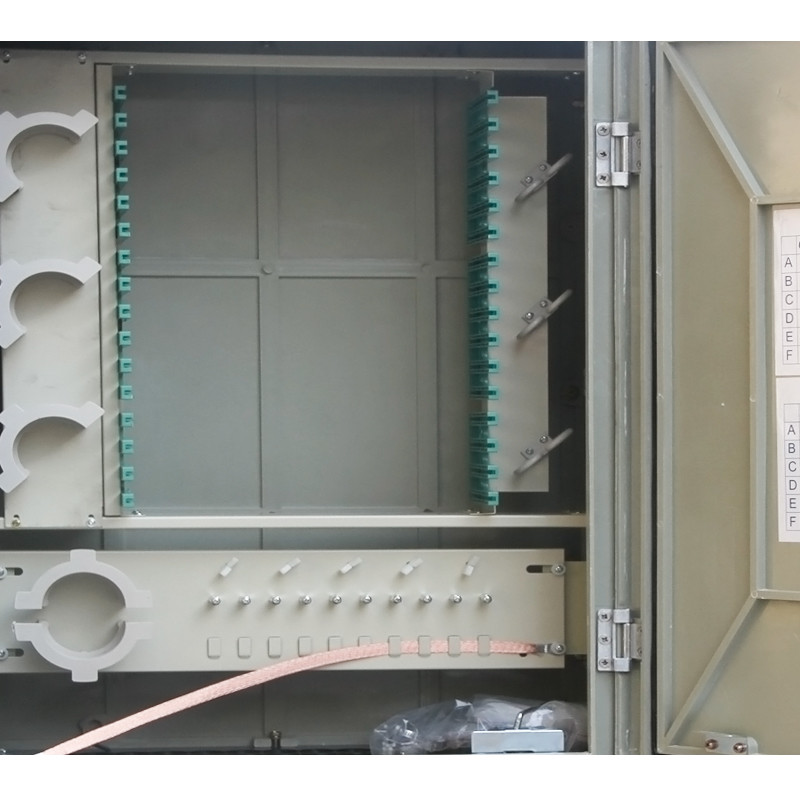

576 Fibers Floor-Standing Outdoor SMC Fiber Distribution Terminal (FDT) Fiber Distribution Box Metal For FTTH Use
Features
-
High intensity and anti-erosion performance
-
Able to counter abrupt climate change and extreme environment
-
Capacity can be flexibly customized as required
-
Installation is quick and convenient
-
Built-in direct splice unit is capable for providing direct connection function.
-
Perfect design of fiber wiring routing could facilitate management and maintenance of fibers
-
With secure and reliable fastening and grounding protection devices for the optic fiber
-
Applicable to strap-shaped and non-strap shaped fibers
-
connecting trunk and distributing optical fiber cable.
-
capability of splicing, storage, and fiber cable distribution.
-
Fiber optic cabinet, max up to 12/24/48 trays, 12 ports one tray, total 144/288/576 ports, FC or SC adapter can be installed.
-
Optional cabinet material: SMC, stainless steel.
-
Effective:rain-proof, dust -proof,pests-proof
Product Detail
| Product name | 288 Core Wall Mounted Fiber Distribution Hub Outdoor Cabinet |
| Connector Type | SC, LC ST,FC |
| Product Size | 550*310*1050mm |
| Material | SMC Or Stainless steel |
| Installation type | Floor-Standing |
| Color | Grey |
| Application | FTTH FTTB FTTX Network |
| Warranty | Limited life |
| Fiber Number | 96/144/288/576 fibers |
| Working temperature | -5℃~+40℃ (indoor), -40℃~+60℃ (outdoor) |
| Product Keywords | Fiber Distribution Terminal,FDT,Fiber Distribution Box Metal |
Cabinet size:
| Type | Size mm |
| Wall Mount 96Cores | 630*440*270mm |
| Floor Standing 96cores | 830*440*270mm |
| Wall Mount 144 cores | 770*540*300mm |
| Floor Standing 144 cores | 1030*540*300mm |
| Floor Standing 288 cores | 1450*750*350mm |
| Floor Standing 576 cores | 1450*750*520mm |
Application
-
Widely used in FTTH access network
-
Telecommunication Networks
-
CATV Networks
-
Data communications Networks
-
Local Area Networks
FAQ
1. Why choose US?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them.
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delivery,ocean transport, land transport , airport transport.
5. What's the Payment?
We accept all payments , such as TT,Western Union, Paypal, Bank Transfer.....
Product Tags:
|
|

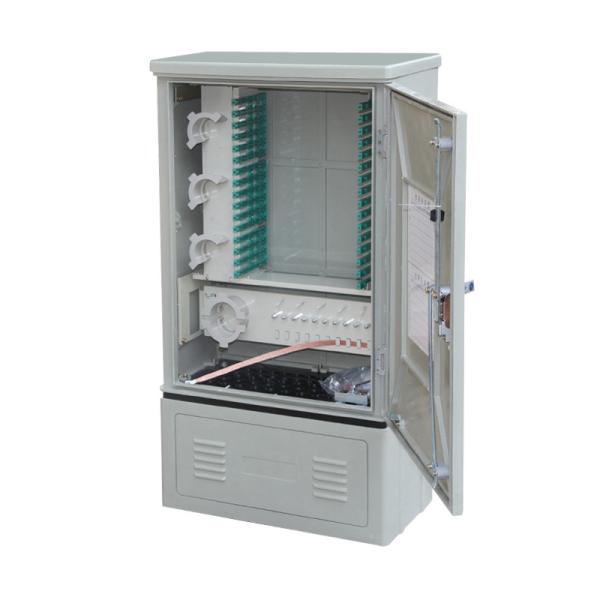

Floor Standing Outdoor SMC 576 Fiber Distribution Terminal Box For FTTH Images
|
