LC/FC/Mu/DIN/St/E2000 & PC/Upc/APC Single Mode Fiber Optic Cable Patch Cord

XDK Communication Equipment Huizhou Co., Ltd
Contact Now

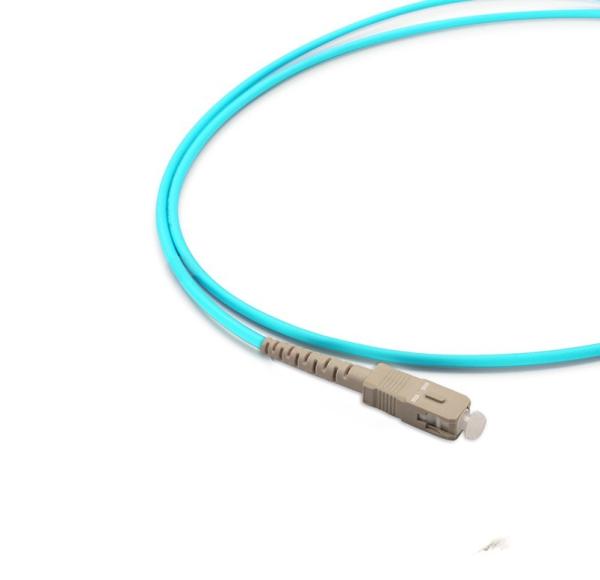

LC/FC/Mu/DIN/St/E2000 & PC/Upc/APC Single Mode Fiber Optic Cable Patch Cord

Brand Name : XDK

Model Number : G652D/G657A1/G657A2

Certification : ISO, OHSAS18001,RoHS,CRP,UL

Place of Origin : China/Vietenam

MOQ : 1

Payment Terms : L/C, D/A, D/P, Western Union, T/T

Supply Ability : 5000000m/month

Delivery Time : around 5 working days

Packaging Details : customizable

Application : Making jumper, pigtail and building distributions

Model number : Figure 8 Self-supporting Aerial Cable (GYTC8S)

Lead time : within one week

Packing : Negotiable

Fiber type : OS1,OS2,OM1,OM2,OM3,OM4

Fiber number : 24-144cores

Strength member : FRP

Contact Now

LC/FC/Mu/DIN/St/E2000 & PC/Upc/APC Single Mode Fiber Optic Cable Patch Cord

Multimode fiber Patch Cord
50/125(μm) 62.5/125(μm)
Return loss(dB) ≥35 ≥35
Insertion loss(dB) Classic value:≤0.2Max:≤0.3 Classic value:≤0.2Max:≤0.3
Working wavelength(nm) 850/1300 850/1300
Repeatability(dB) ≤0.1 ≤0.1
Intermissions(times) ≥1000 ≥1000
tensile strength(N) φ3.0:≥90;φ2.0:≥70 φ3.0:≥90;φ2.0:≥70
Operating temperature(℃) -40~+80℃ -40~+80℃

LC/FC/Mu/DIN/St/E2000 & PC/Upc/APC Single Mode Fiber Optic Cable Patch Cord

6. Cable marking and cable reel marking

6.1 Cable marking

The cable sheath shall be marked with white characters at intervals of one meter with following information:

(1) Purchaser’s name

(2) Cable type

(3) Fiber type and counts

(4) Year of manufacture

(5) Length marking

Notice: cable mark is available if requested by customer.

6.2 Cable reel

Details given below shall be marked with a weather materials on both outer sides of the reel flange :

(1) Cable type and fiber counts

(2) Length of cable in meters

(3) Year of manufacture

Notice: shipping mark is available if requested by customer.

7, Packing Informations

(1) Packing material: Wooden drum

(2) Packing length: standard length of cable shall be 2 km. Other cable length is also available if required by customer
