G652D Single Mode Fiber Patch Cable

Brand Name : XDK

Model Number : Fiber Optic Patch Cord SC/UPC-SC/UPC,G652D, Simplex

Certification : ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS

Place of Origin : China/Vietnam

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 5-8 work days

Packaging Details : regular packaging

Supply Ability : 5 million termination/month

Fiber Mode : G652D

Connector Type : SC/UPC-SC/UPC

Fiber Count : Simplex

Jacket Material : LSZH, PVC( customized)

Jacket Color : Yellow

Length : 1m,5m(customized)

Contact Now

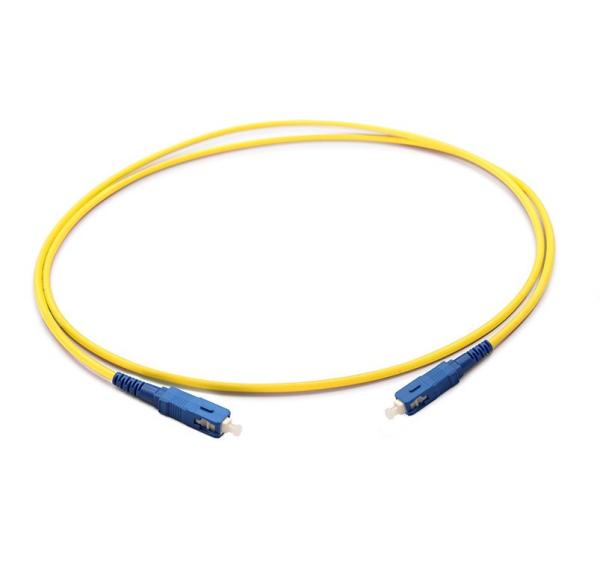

Fiber Optic Patch Cord/SC/UPC-SC/UPC Singlemode G652D/ Simplex/3.0mm/ LSZH/PVC/ Yellow

Introduction

Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards. FC, SC, ST, LC Patch Cords are available in both multimode and single mode cable-types, in duplex and simplex versions.

G652D Single Mode Fiber Patch Cable

Features

1) Avalible in simplex, duplex connector options

2) Quick-tum service for fast delivery

3) TIA compliant color-coded connectors and boots

4) Cable jaket and boots color-coded for easy ID of fiber

5) Fiber options: OS2, OM1,OM3, and OM4

6) 100% tested for insertion loss and return loss

7) Other jacket colors available as custom with MOQ and lead time applicable

Specification

Connector Type	SC/UPC to SC/UPC	Fiber Count	Simplex
Fiber Mode	G652D 9/125um	Working Wavelength	1260~1625nm
Insertion Loss	≤0.3dB	Return Loss	≥50dB
Attenuation at 1310/1550nm (Typical)	0.36/0.22 dB/km	Ferrule Materials	Ceramic
Cable Diameter	3.0mm	Strength Member	Aramid yarn
Minimum Bend Radius (Long term)	10D	Minimum Bend Radius (Short term)	20D
Cable Jacket	PVC or LSZH	Cable Colour	Yellow
Operating Temperature	-20~70°C	Storage Temperature	-40~85°C

Our advantages
1) Professional cable manufacturer
2) About 20 years experiences in cable industry
3) MOQ just 1Km
4) ISO, UL , ROSH,REACH...certifications
5) Can be customized production of fiber optic cable

Product Tags:

G652D single mode fiber patch cable

LSZH single mode fiber patch cable

G652D Single Mode Fiber Patch Cable Images
