Introduction of Simplex ST/APC-ST/APC Fiber Optic Patch Cord
Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards. FC, SC, ST, LC Patch Cords are available in both multimode and single mode cable-types, in duplex and simplex versions.
Our patch cord provides high reliability and flexibility for our customers in different industries. Our top-of-the-line fiber optic cable assemblies and stringent manufacturing process ensures the excellent optical performance for our patch cords with traceable data. All patchcords can be customized in length, fiber mode and connector types to suit every single customer requirement with our state-of-art production facilities.
Features of Simplex ST/APC-ST/APC Fiber Optic Patch Cord
1) Avalible in simplex, duplex connector options
2) Quick-tum service for fast delivery
3) TIA compliant color-coded connectors and boots
4) Cable jaket and boots color-coded for easy ID of fiber
5) Fiber options: OS2, OM1,OM3, and OM4
6) 100% tested for insertion loss and return loss
7) Other jacket colors available as custom with MOQ and lead time applicable
Specifications of Simplex ST/APC-ST/APC Fiber Optic Patch Cord
| Connector Type | ST/APC to ST/APC | Fiber Count | Simplex |
| Fiber Mode | G652D 9/125um | Working Wavelength | 1260~1625nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
| Attenuation at 1310/1550nm (Typical) | 0.36/0.22 dB/km | Ferrule Materials | Ceramic |
| Cable Diameter | 3.0mm | Strength Member | Aramid yarn |
| Minimum Bend Radius (Long term) | 10D | Minimum Bend Radius (Short term) | 20D |
| Cable Jacket | PVC or LSZH | Cable Colour | Yellow |
| Operating Temperature | -20~70°C | Storage Temperature | -40~85°C |
Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH
Testing Lab
| No | Device name | No | Device name |
| 1 | Optical time domain reflectometer (OTDR) | 8 | GNZV Cable Torsion Testing Machine |
| 2 | Fiber Polarization Mode Dispersion | 9 | GQNV Cable Flexing Testing Machine |
| 3 | Fiber Dispersion ,Strain Tester | 10 | GJRV Cable Winding Testing Machine |
| 4 | High Low Temperature Test Chamber | 11 | GZDV Cable Vibration Testing Machine |
| 5 | Cable Impact Testing Machine | 12 | Cable Water Penetration Test |
| 6 | Cable Squash Tensile Testing Machine | 13 | Fusion Splicer |
| 7 | GWQV Cable Bending Tester | 14 | Cable Water Penetration Test Rig |
Our advantages of Simplex ST/APC-ST/APC Fiber Optic Patch Cord
1) Professional cable manufacturer
2) About 20 years experiences in cable industry
3) MOQ just 1Km
4) ISO, UL , ROSH,REACH...certifications
5) Can be customized production of fiber optic cable

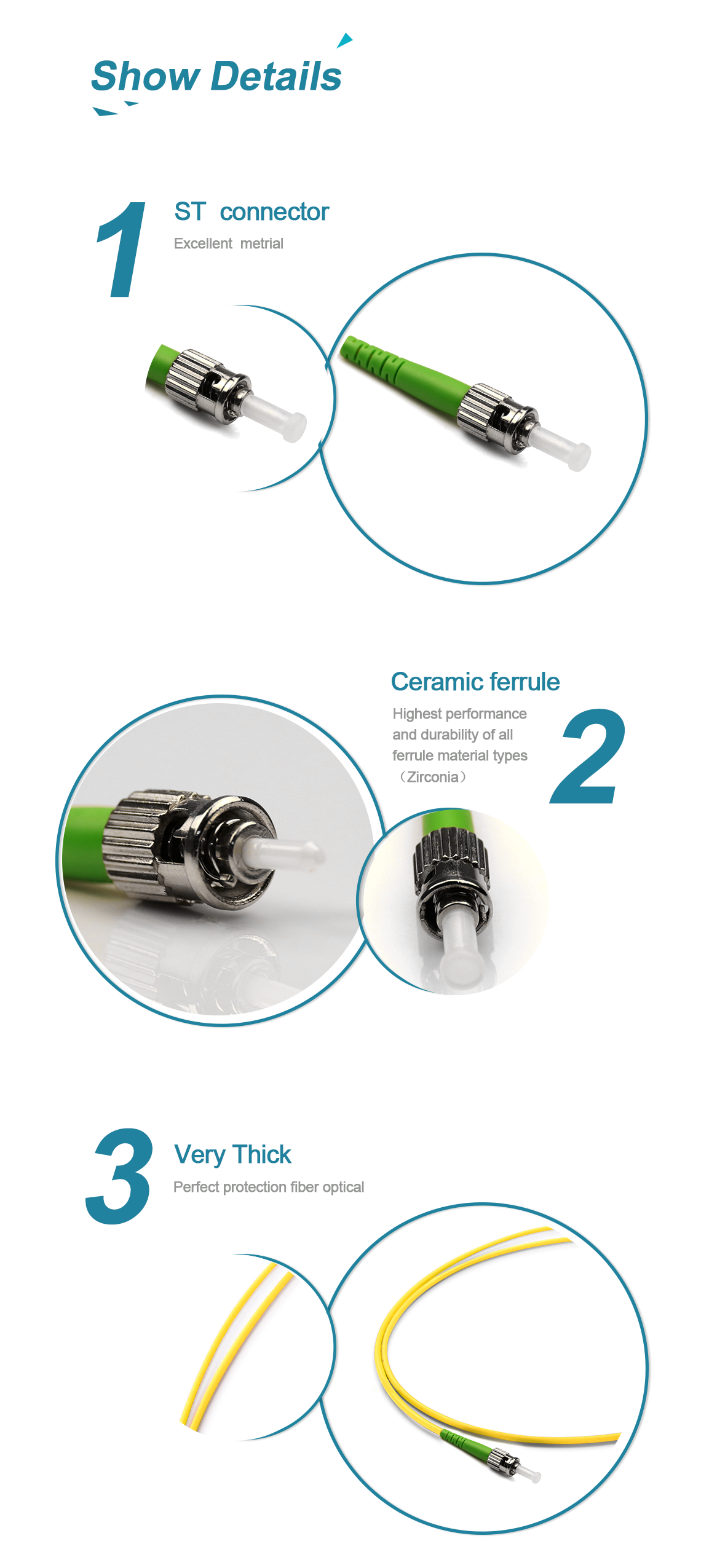

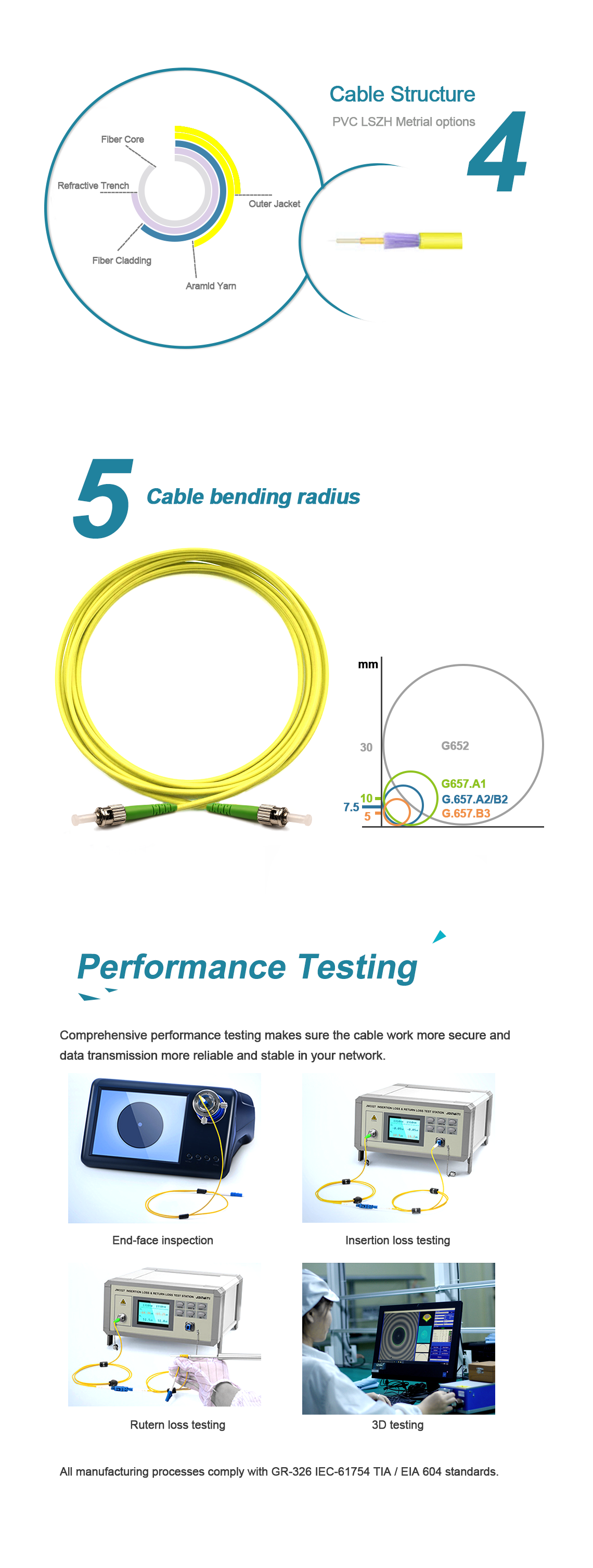

Pictures of Simplex ST/APC-ST/APC Fiber Optic Patch Cord
|
|

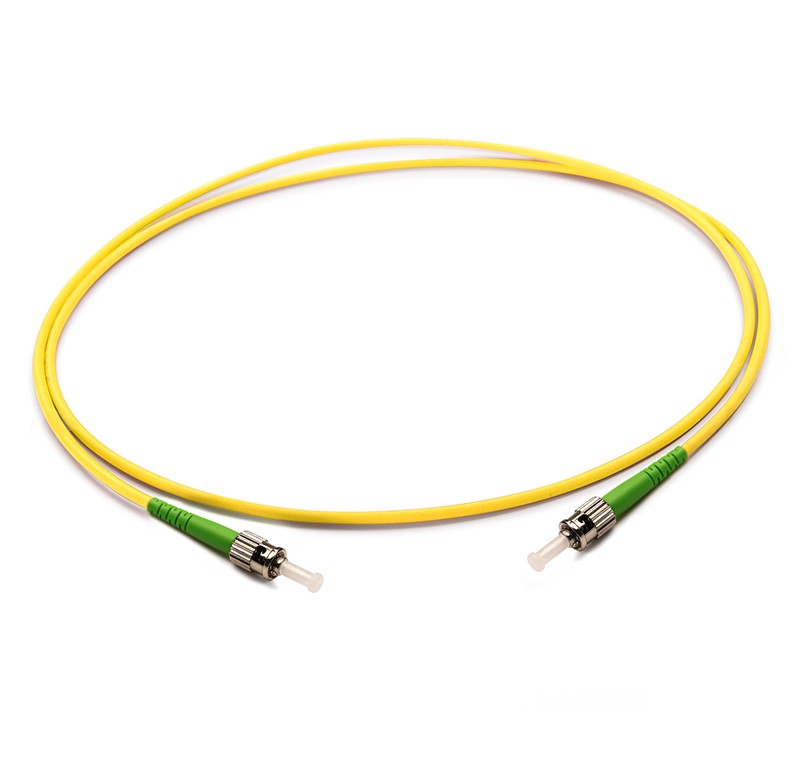

Singlemode G652D Simplex ST/APC-ST/APC Fiber Optic Patch Cord Images
|
