Ceramic SC Fiber Optic Connector For FTTH FTTB FTTX Network

Brand Name : XDK

Model Number : Fiber optic connector

Certification : ISO, OHSAS18001,RoHS,CRP,UL

Place of Origin : China/Vietenam

MOQ : 1

Payment Terms : L/C, D/A, D/P, Western Union, T/T

Supply Ability : 5000000/month

Delivery Time : around 5 working days

Packaging Details : customizable

Insertion loss : Typical≤0.20dB,max.≤0.30dB

Application : FTTH FTTB FTTX Network, CATV, to make patch cord, Telecommunication

Connector type : ST/SC/FC/LC/MTRJ/MU/E2000

Fiber type : SM/MM

Work wavelength : 1310nm/1550nm/850nm/1300nm

Lead time : within one week

Packing : Negotiable

Repeatability : ≤0.20dB

Exchangeability : ≤0.20dB

Durability : 1000 Mating, max≤0.20dB

Channel Number : Single core, dual-core

Housing Material : Plastic or metal

Boot(Option) : 3.0mm, 2.0mm or 0.9mm

Ferrule : Ceramic (ZrO2) or customized

Operating Temperature : -40℃ to +80℃

Storage Temperature : -40℃ to +80℃

Contact Now

OEM available SC fiber optic connector for FTTH FTTB FTTX Network with fast delivery

Description of OEM available SC fiber optic connector

Fiber Optic Connector is an important component used in the fiber optic network. It is also the key part used in fiber optic patch cable and fiber optic pigtail. There are various fiber optic connectors.at Fiber Mania, we provide a complete line of one piece fiber optic connectors with various types, including standard connectors and irregular types and epoxy types, for both single-mode and mult-mode applications.

Advantanges of OEM available SC fiber optic connector

Low insertion loss
Corrosion resistant body
Ultra-low back reflection
For 3.0mm, 2.0mm jacket or 900um buffer
One Piece with pre-domed ceramic ferrule is designed for easy assembly
Meets Telecordia-GR-326-CORE specifications

Parameters of OEM available SC fiber optic connector

Item	Parameter
Connector Type	ST,SC,FC,LC,MTRJ,MU,E2000
Fiber Type	SM	MM
Color	Blue, Green, Metallic	Beige, Metallic, Black

Testing Wavelength	1310nm, 1550nm	850nm, 1300nm
Insertion Loss	Typical≤0.20dB,max.≤0.30dB
Repeatability	≤0.20dB
Exchangeability	≤0.20dB
Durability	1000 Mating, max≤0.20dB
Channel Number	Single core, dual-core
Housing Material	Plastic or metal
Boot(Option)	3.0mm, 2.0mm or 0.9mm
Ferrule	Ceramic (ZrO2) or customized
Operating Temperature	-40℃ to +80℃
Storage Temperature	-40℃ to +85℃

Applications of OEM available SC fiber optic connector

CATV, MANs, WANs
FTTx
Telecommunication
Broadband
Optical fiber test equipment

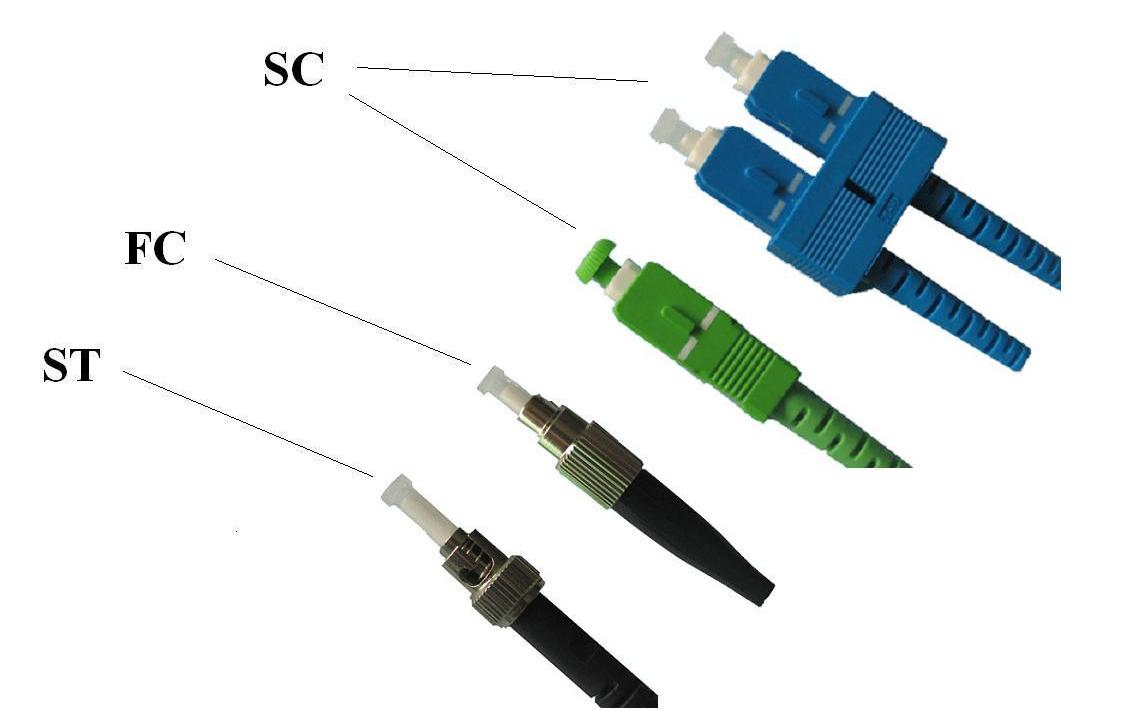

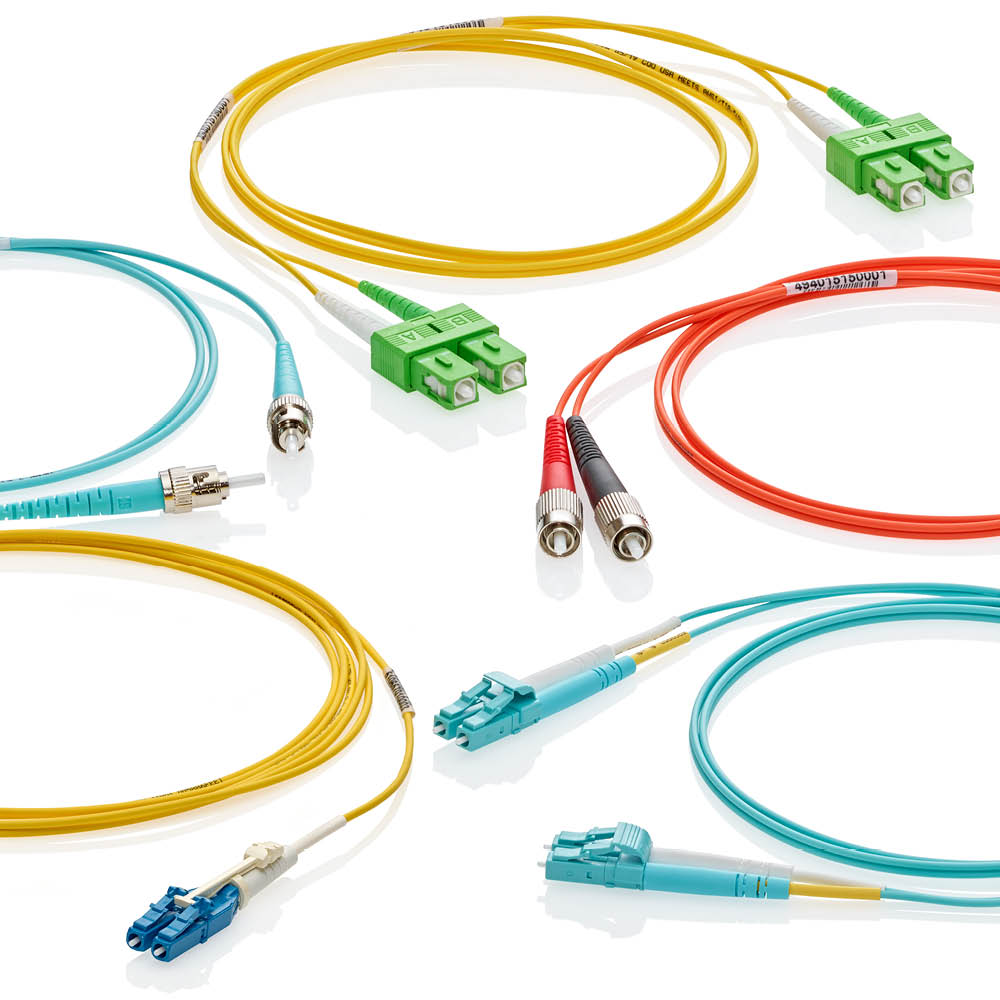

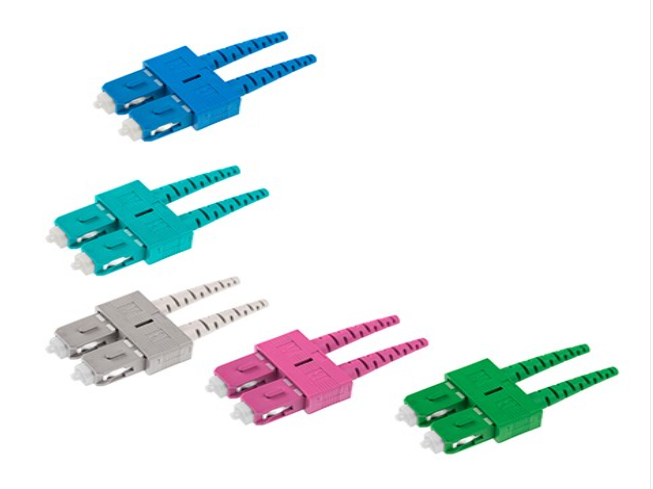

Images of OEM available SC fiber optic connector

Ceramic SC Fiber Optic Connector For FTTH FTTB FTTX Network
